Non-standard Telescopic Forks

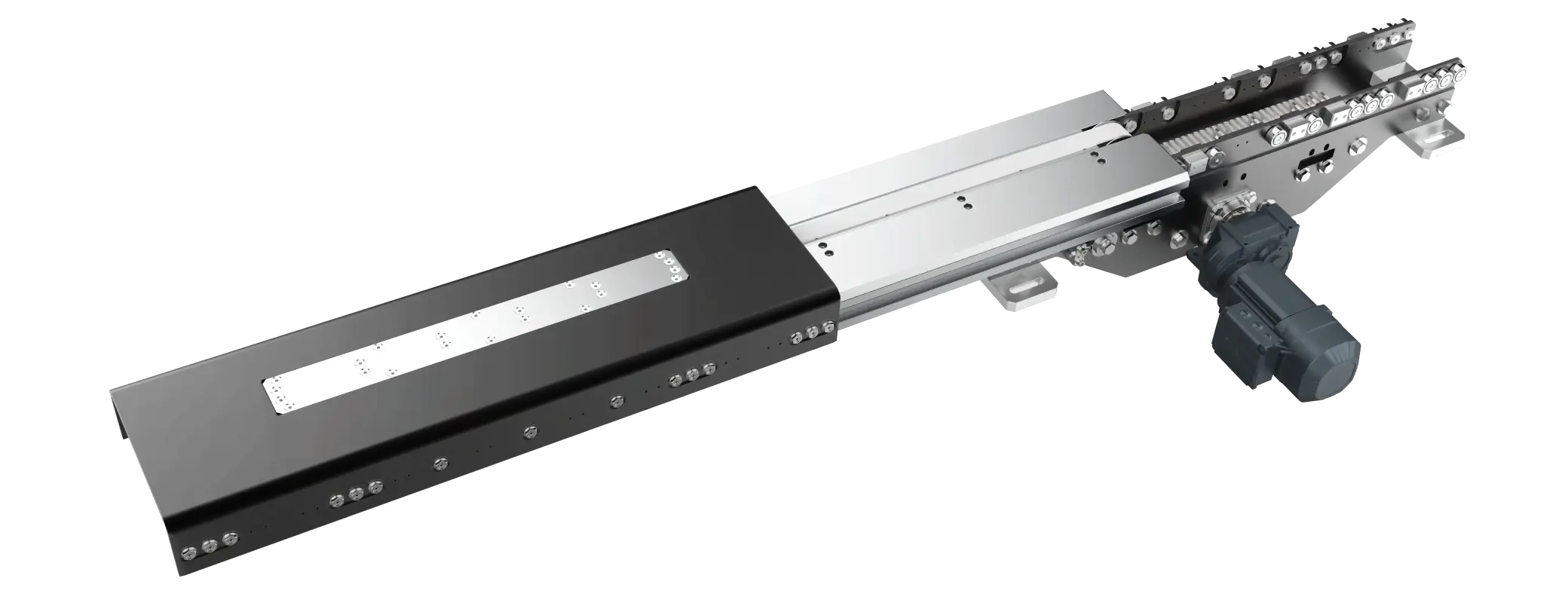

Synchronous Belt Fork
The synchronous belt telescopic fork has synchronous belt transmission in both two stages. It is suitable for handling heavy-duty materials of long and large pieces.
Moving Section (mm)
440×185 / Customized
Fork Width (mm)
440 / Customized
Fork Thickness (mm)
185 / Customized
Payload (kg)
2000 / Customized
Upper Fork Length (mm)
2600 / Customized
Lower Fork Length (mm)
2600 / Customized
Stroke (mm)
2880 / Customized
Laden Deflection (mm)
30 ±10%
Technical Characteristics
■ High Speed & Stability & High Precision
■ High Efficiency & Durability
■ Maintenance-Free
■ Light Self-weight
The synchronous belt telescopic fork has synchronous belt transmission in both two stages. It is suitable for handling heavy-duty materials of long and large pieces.
Moving Section (mm)
440×185 / Customized
Payload (kg)
2000+ / Customized
Fork Width (mm)
440 / Customized
Fork Thickness (mm)
185 / Customized
Upper Fork Length (mm)
2600 / Customized
Lower Fork Length (mm)
2600 / Customized
Stroke (mm)
2880 / Customized
Laden Deflection (mm)
30 ±10%
Technical Characteristics
■ High Speed & Stability & High Precision
■ High Efficiency & Durability
■ Maintenance-Free
■ Light Self-weight
